VTC-85150-SB-BS

>S-Clamps Clamp VTC-85150-SB/BS
Vertical hold down action toggle clamp

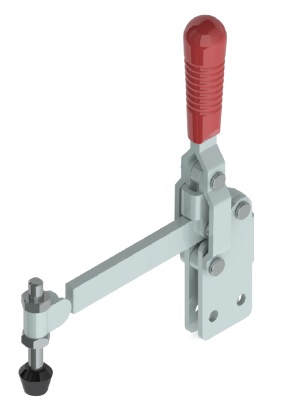

The S-Clamps Clamp VTC-85150-SB/BS is a Vertical hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of VTC85150SBBS

Material grade

Steel / zinc-plated

Base type

Straight base

Spindle position

Weldable spindle position

Holding capacity

600 Kg

Holding capacity

6000 N

Handle movement

107 degrees

Bar movement

96 degrees

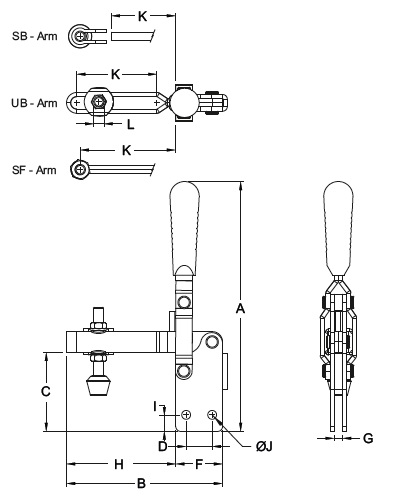

Dimensions

A

375

B

218

C

116

D

45

F

76

G

10

H

142

I

15

J

8.5

K

142

L

M16 Bolt

Anemo Engineering is offering S-Clamps Clamp VTC-85150-SB/BS as Factory New.
