VTC-8154-SB-BS

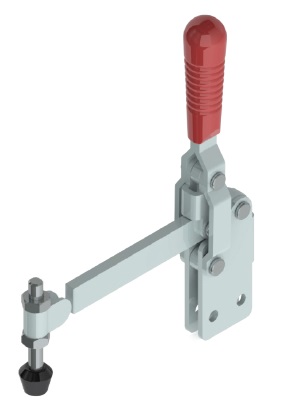

>S-Clamps Clamp VTC-8154-SB/BS
Vertical hold down action toggle clamp

The S-Clamps Clamp VTC-8154-SB/BS is a Vertical hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of VTC8154SBBS

Material grade

Steel / zinc-plated

Base type

Straight base

Spindle position

Weldable spindle position

Holding capacity

200 Kg

Holding capacity

2000 N

Handle movement

60 degrees

Bar movement

114 degrees

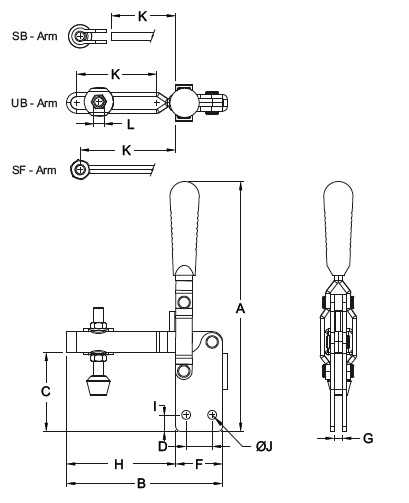

Dimensions

A

232

B

98

C

79

D

I

F

40

G

6

H

58

J

K

58

L

M8 Bolt

Anemo Engineering is offering S-Clamps Clamp VTC-8154-SB/BS as Factory New.
