LC-25-HUF

Hydraulic Link Clamps Upper Flanged Version LC-25-HUF

s-clamps logo
LC-25-HUF Product image

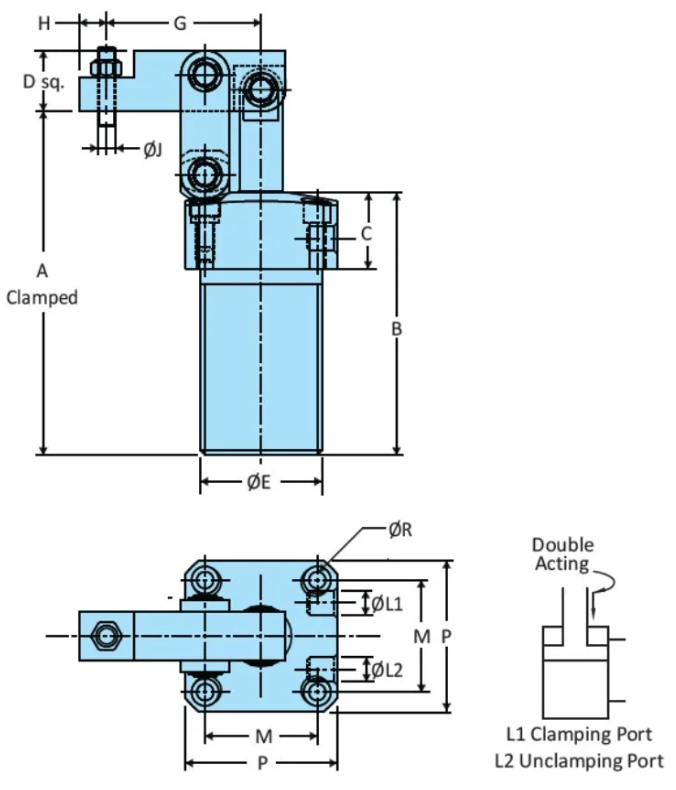

LC-25-HUF Product technical image


This S-Clamps clamp LC-25-HUF is a Hydraulic Link Clamps Upper Flanged Version LC-25-HUF
Anemo Engineering is offering link clamp LC-25-HUF as factory new.

Request Free sample Request 3D Drawing

Properties of LC-25-HUF of

Material
Aluminum Allody Body
Range
Universal
Weight Kgs
0.6
Piston Dia
14
Bore Dia
25
Clamping Stroke
22
Finish
Black Anodizing
Acting Type
Double Acting
Force
32-218 Kgs
Working Pressure
4-7 Bar



Dimensions

A
111.5

B
86.5

C
25

D
17

E
M40x1.5

G
41

H
7

J
M6x1.0

L
M5x0.8

M
37

P
50

R
5.5
