HTC-608-TRIG

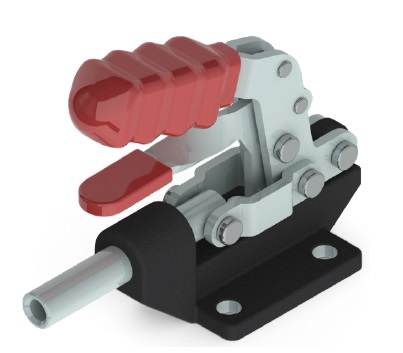

>S-Clamps Clamp - HTC-608-TRIG
Straight line - flanged


The S-Clamps Clamp - HTC-608-TRIG is a Straight line action clamps. This part has been discontinued due to design issues, we have now developed a new model to replace this. Part No:

HTC-608-PS-TRIG
Request Free sample Request 3D Drawing

Properties of HTC608TRIG

Material grade
Steel / zinc-plated
Base type
Flanged base
Holding Capacity
3900 N

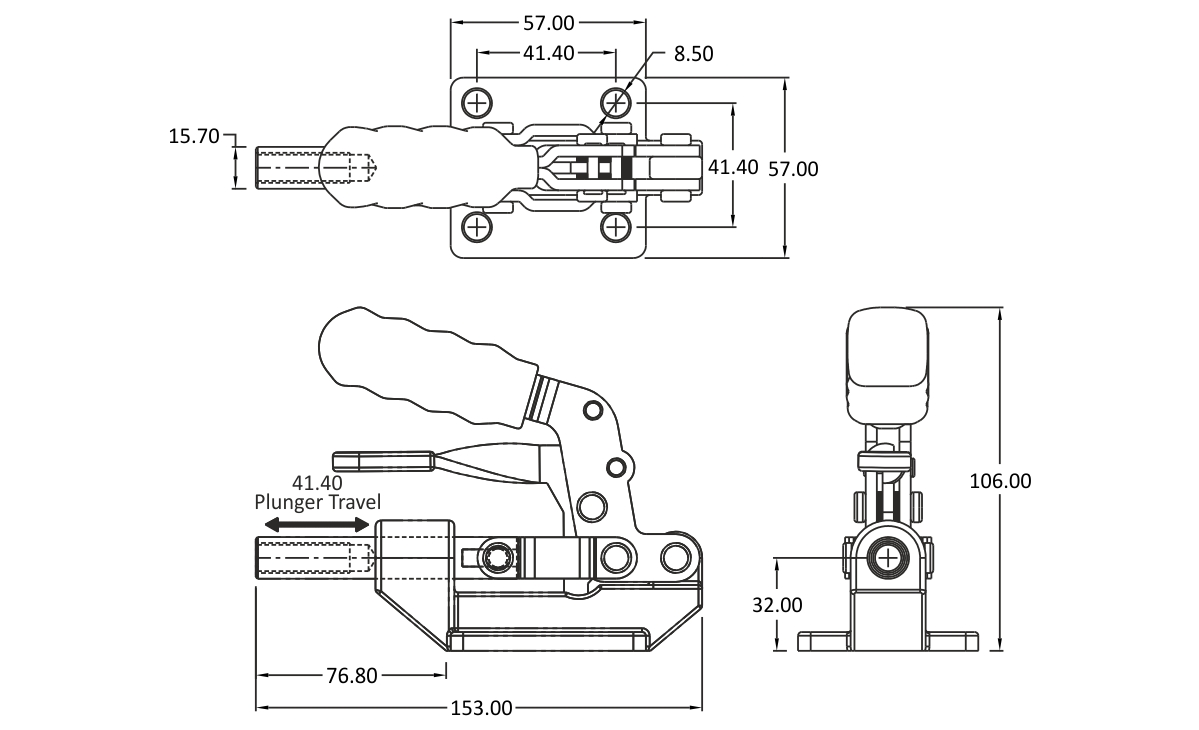

Dimensions

A
106

B
153

C
32

D
41.4

E
41.4

F
57

G
57

H
76.8

J
8.5

M
15.7

Plunger thread
M10x1,50

Plunger travel
41.4




Anemo Engineering is offering S-Clamps Straight line action clamps HTC-608-TRIG as Factory New.
