HTC-607-TRIG

S-Clamps Clamp - HTC-607-TRIG
Straight line - flanged

s-clamps logo

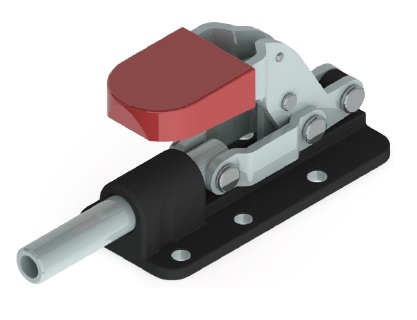

HTC-607-TRIG Product image

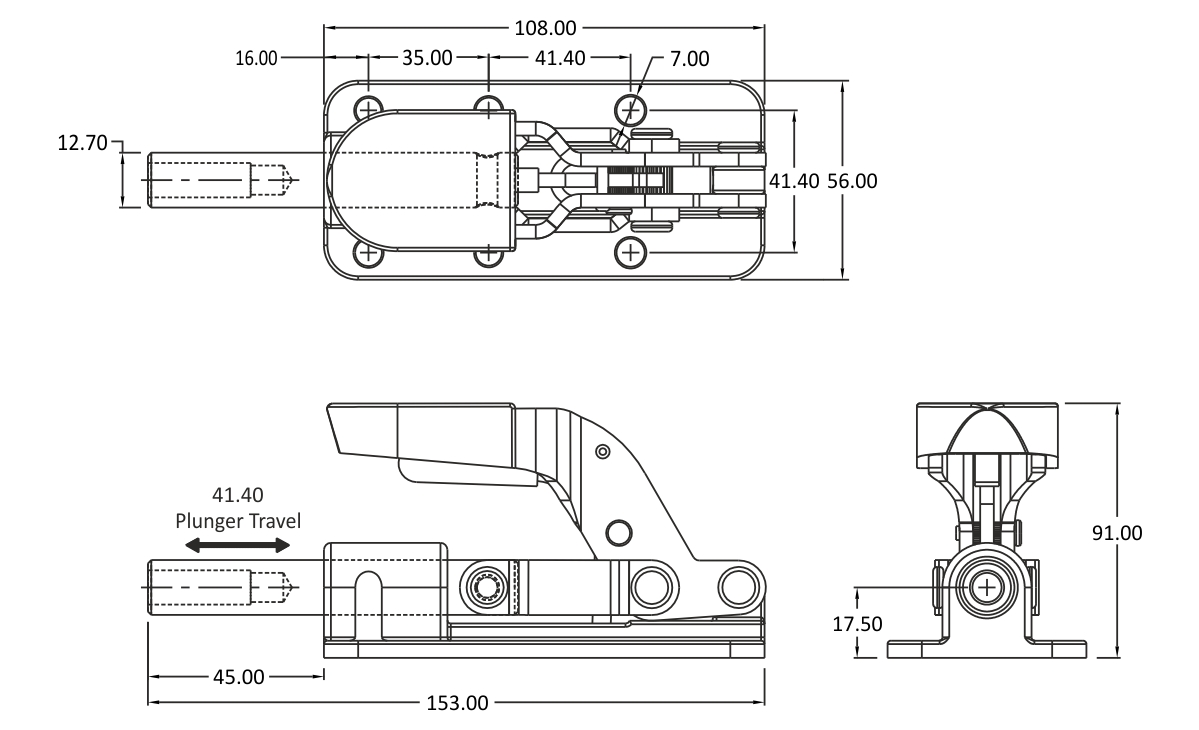

HTC-607-TRIG Product technical image


The S-Clamps Clamp - HTC-607-TRIG is a Straight line action clamps. This part has been discontinued due to design issues, we have now developed a new model to replace this. Part No:

Recommended:

HTC-607-LH-TRIG
Request Free sample Request 3D Drawing

Properties of HTC607TRIG

Material grade
Steel / zinc-plated
Base type
Flanged base
Holding Capacity
5900 N



Dimensions

A
91

B
153

C
17.5

D
35

D1
41.4

E
41.4

F
108

G
56

H
60

J
7

M
12.7

Plunger thread
M8x1.25




Anemo Engineering is offering S-Clamps Straight line action clamps HTC-607-TRIG as Factory New.
