H-3665-SF

>S-Clamps Clamp - H-3665-SF

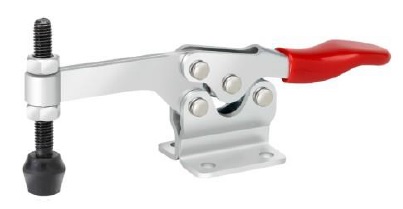

Horizontal hold down action toggle clamp


The S-Clamps Clamp - H-3665-SF is a Horizontal hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of H3665SF

Material grade
Steel / zinc-plated
Base type
Flanged base
Spindle position
Fixed spindle position
Holding Capacity (kg)
240 kg
Holding Capacity (N)
2400 N
Handle movement
70 degrees
Bar movement
90 degrees



Dimensions

A
50

B
175

C
36

D
29

E
26

F
44

G
40

H
70

J
6.5

K
62

L
M8 Bolt





Anemo Engineering is offering S-Clamps Horizontal hold down action toggle clamp H-3665-SF as Factory New.
