H-237-U-AB

>S-Clamps Clamp - H-237-U-AB

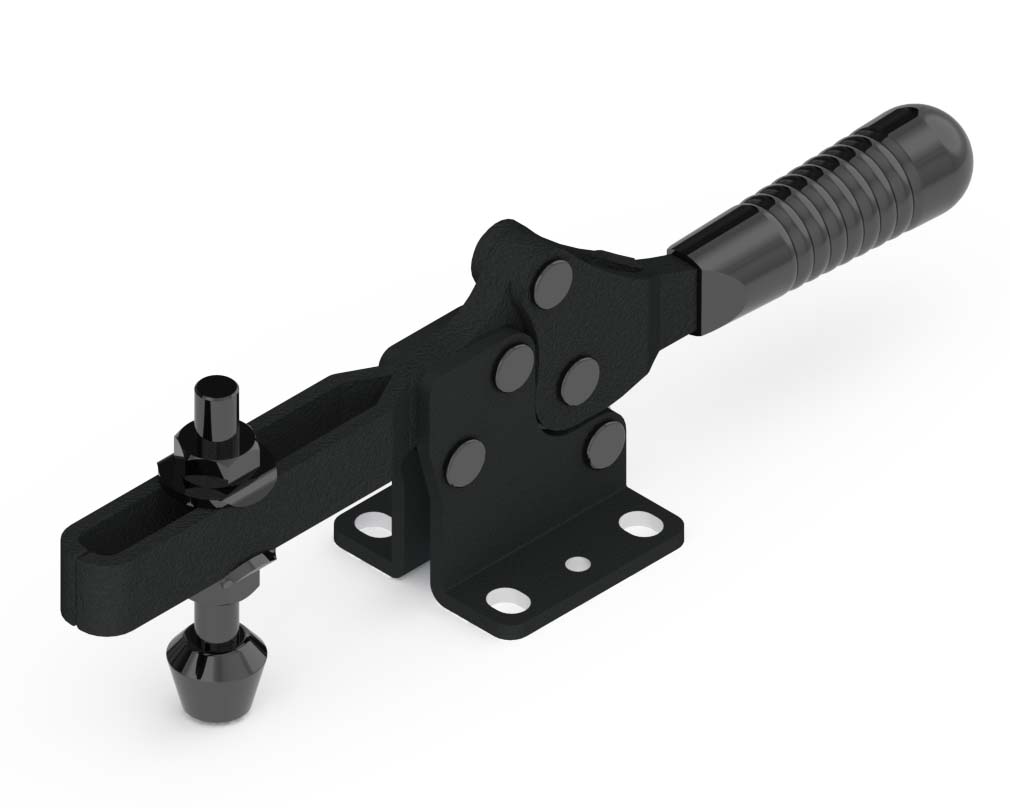

Horizontal hold down action toggle clamp


The S-Clamps Clamp - H-237-U-AB is a Horizontal hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of H237UAB

Material grade
Steel / zinc-plated
Base type
Flanged base
Spindle position
Gliding spindle position
Holding Capacity (kg)
340 kg
Holding Capacity (N)
3400 N
Handle movement
63 degrees
Bar movement
92 degrees

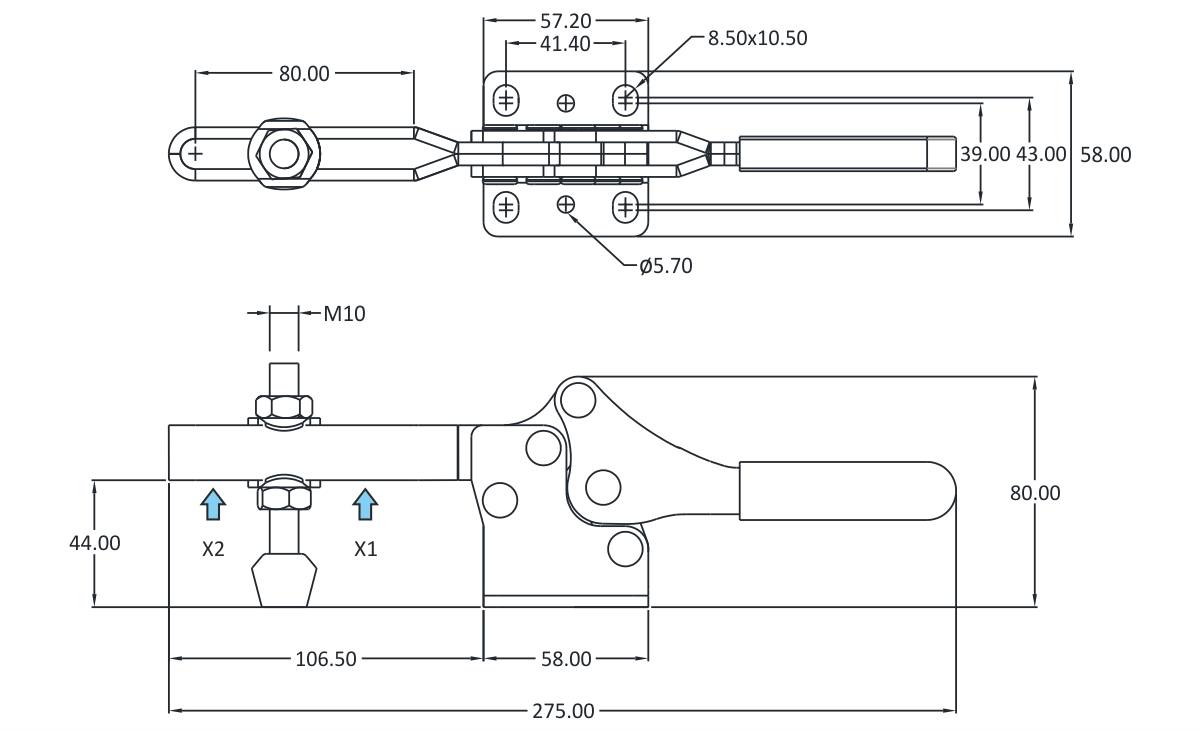

Dimensions

A
80

B
275

C
44

D
41.4

E
43

E1
39

F
57.2

H
105

J
8.5x10.5

K
80

L
M10 Bolt





Anemo Engineering is offering S-Clamps Horizontal hold down action toggle clamp H-237-U-AB as Factory New.
