VTC-85150-SB

>S-Clamps Clamp VTC-85150-SB
Vertical hold down action toggle clamp

The S-Clamps Clamp VTC-85150-SB is a Vertical hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of VTC85150SB

Material grade

Steel / zinc-plated

Base type

Flanged base

Spindle position

Weldable spindle position

Holding capacity

600 Kg

Holding capacity

6000 N

Handle movement

107 degrees

Bar movement

96 degrees

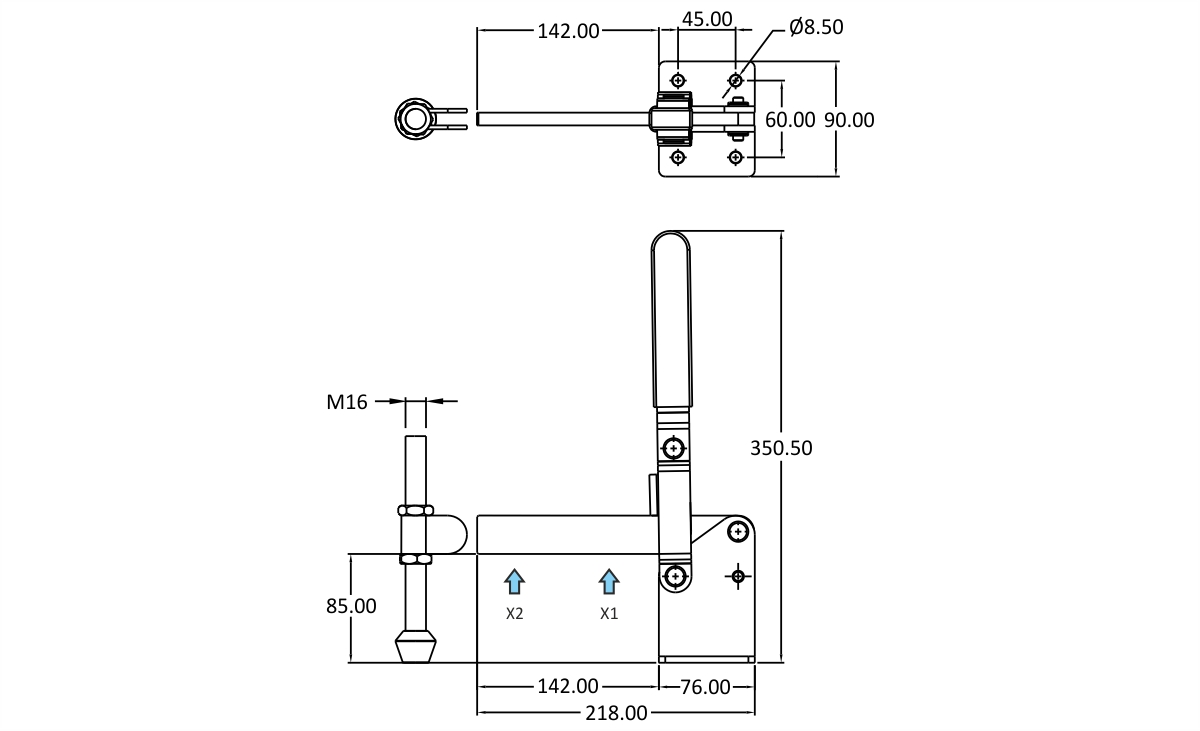

Dimensions

A

350

B

218

C

85

D

45

E

60

F

76

G

90

H

130

J

8.5

K

130

L

M16 Bolt

Anemo Engineering is offering S-Clamps Clamp VTC-85150-SB as Factory New.
