VTC-4595-SB

>S-Clamps Clamp VTC-4595-SB

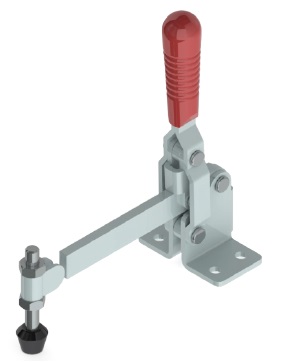

Vertical hold down action toggle clamp

The S-Clamps Clamp VTC-4595-SB is a Vertical hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of VTC4595SB

Material grade

Steel / zinc-plated

Base type

Flanged base

Spindle position

Weldable spindle position

Holding capacity

400 Kg

Holding capacity

4000 N

Handle movement

60 degrees

Bar movement

120 degrees

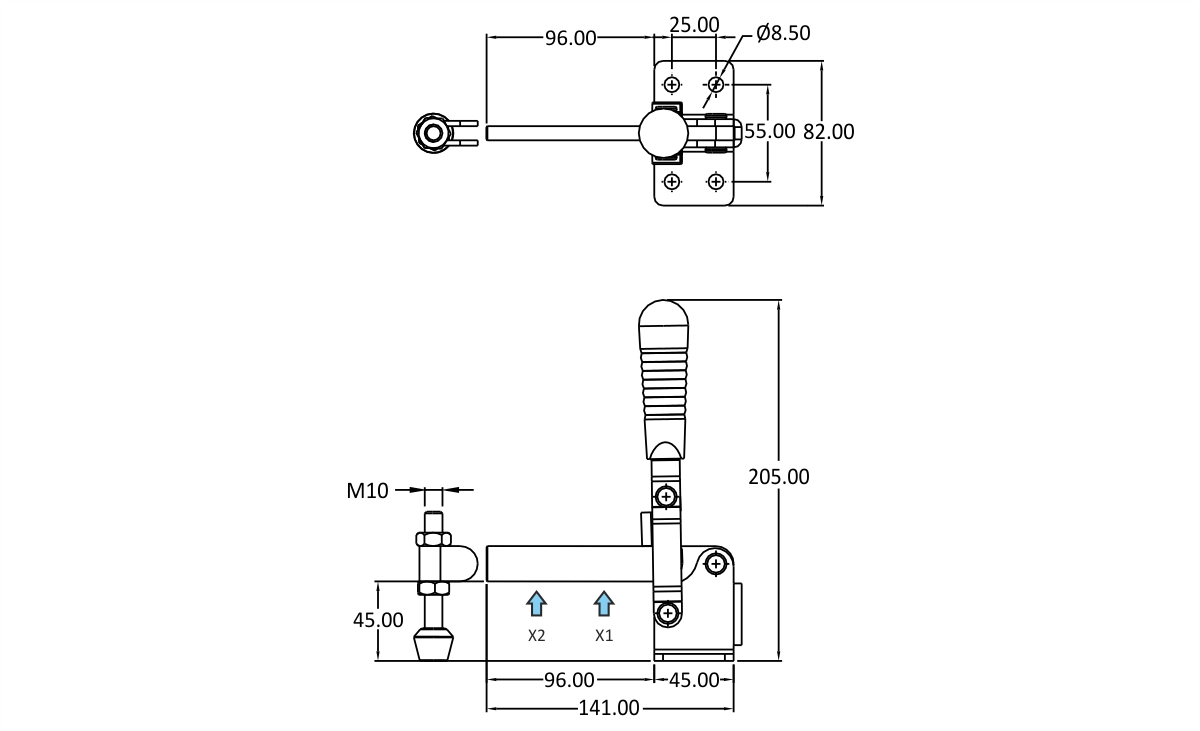

Dimensions

A

205

B

141

C

45

D

25

E

55

F

45

G

82

H

105

J

8.5

K

96

L

M10 Bolt

Anemo Engineering is offering S-Clamps Clamp VTC-4595-SB as Factory New.
