VTC-202-TUB-SS

>S-Clamps Clamp VTC-202-TUB-SS

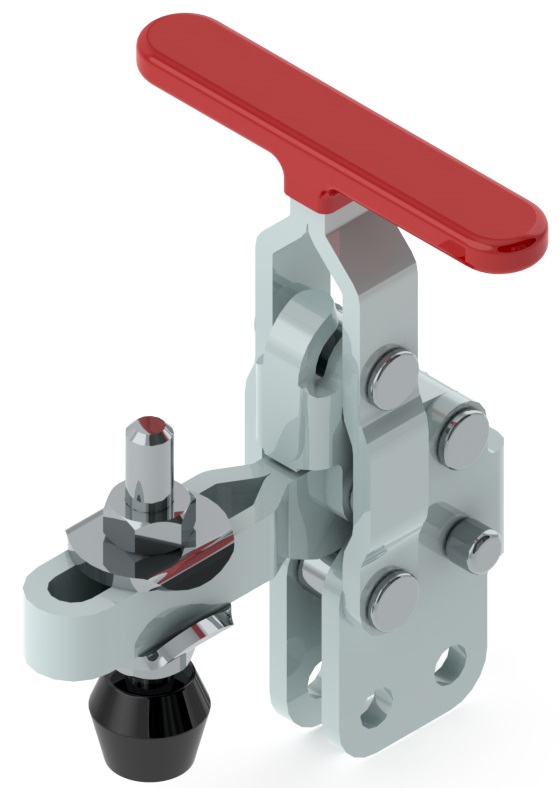

Vertical hold down action toggle clamp


The S-Clamps Clamp VTC-202-TUB-SS is a Vertical hold down action toggle clamp.
This clamp is also available in stainless steel 316

VTC-202-TUB-SS-316
Request Free sample Request 3D Drawing

Properties of VTC202TUBSS

Material Grade
Stainless Steel
Base type
Straight base
Spindle position
Gliding spindle position
Holding capacity
100 Kg
Holding capacity
1000 N
Handle movement
64 degrees
Bar movement
104 degrees

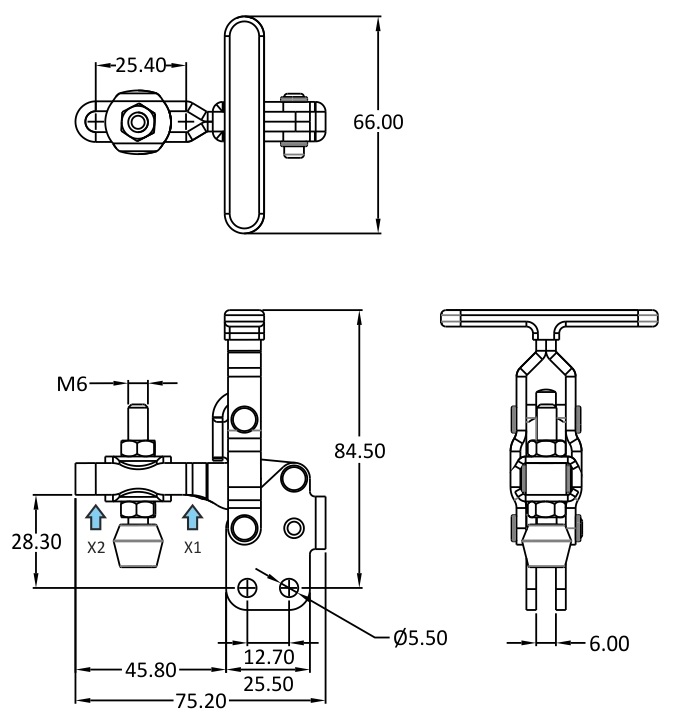

Dimensions

A
84.5

B
75.2

C
28.3

D
12.7

E
6

F
25.5

G

H
45.8

J
5.5

K
25.4

L
66

M
M6 Bolt




Anemo Engineering is offering S-Clamps Clamp VTC-202-TUB-SS as Factory New.
