HTC-603-PS

>S-Clamps Clamp - HTC-603-PS
Straight line - flanged

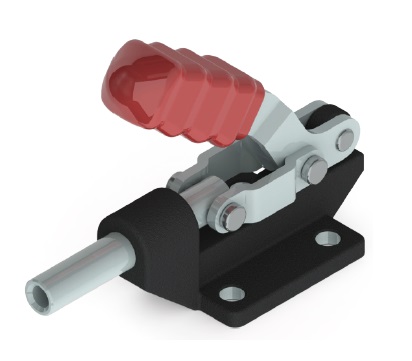

The S-Clamps Clamp - HTC-603-PS is a Straight line action clamps.

Request Free sample Request 3D Drawing

Properties of HTC603PS

Material grade

Steel / zinc-plated

Base type

Flanged base

Holding Capacity

2900 N

Dimensions

A

85.5

B

125

C

24

D

36.5

E

33

F

52.1

G

48

H

52

J

6.7

M

11

Plunger thread

M8x1,25

Plunger travel

31.75

Anemo Engineering is offering S-Clamps Straight line action clamps HTC-603-PS as Factory New.
