HTC-35100-LH

>S-Clamps Clamp - HTC-35100-LH
Straight line - flanged


The S-Clamps Clamp - HTC-35100-LH is a Straight line action clamps. This part has been discontinued due to design issues, we have now developed a new model to replace this. Part No:

HTC-35100-LH-TRIG
Request Free sample Request 3D Drawing

Properties of HTC35100LH

Material grade
Steel / zinc-plated
Base type
Flanged base
Holding Capacity
2000 Kg
Holding Capacity
20000 N

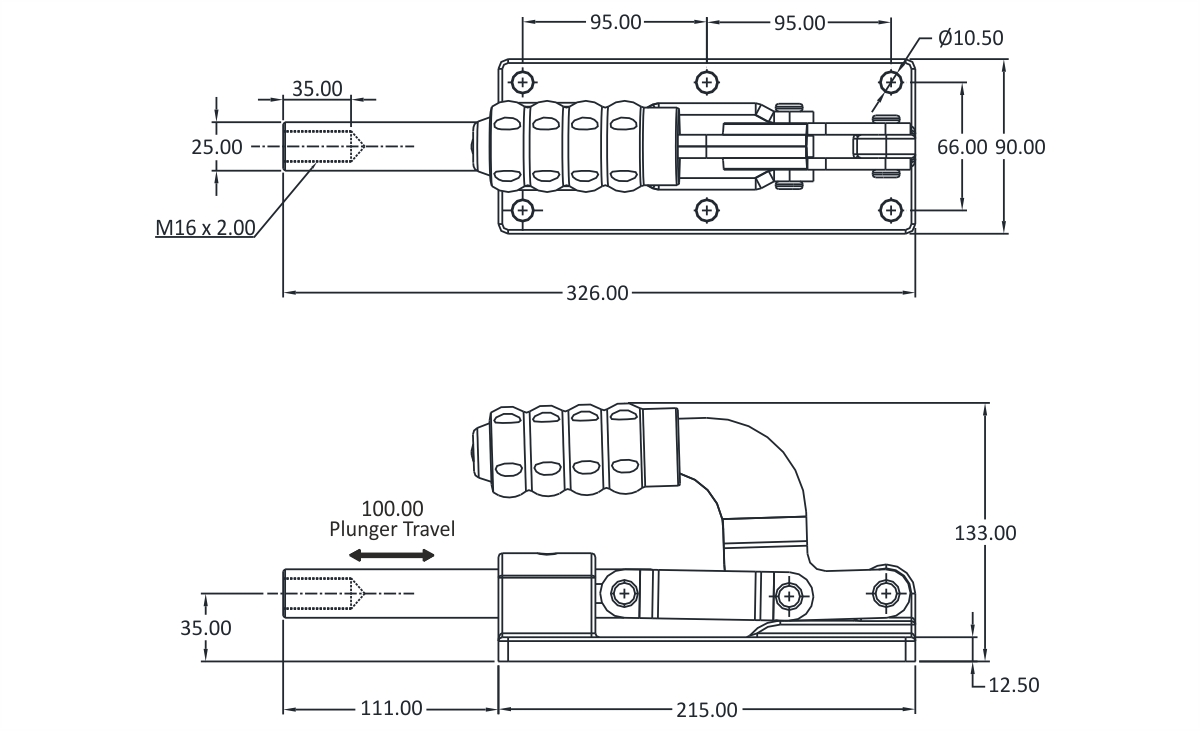

Dimensions

A
35

B
100

C
90

D
215

E
12.5

F
111

G
25

H
130

L
319

M
66

N
95

P
35




Anemo Engineering is offering S-Clamps Straight line action clamps HTC-35100-LH as Factory New.
