H-57126-SF

>S-Clamps Clamp - H-57126-SF
Horizontal hold down action toggle clamp

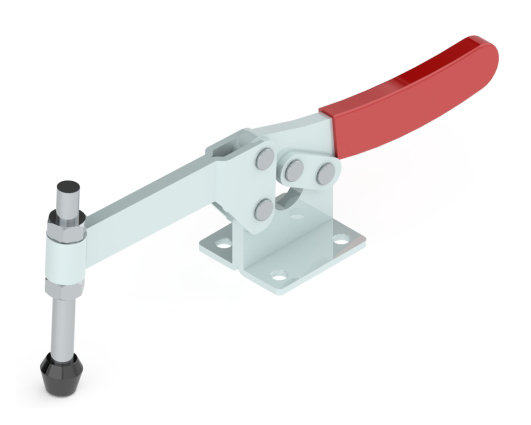

The S-Clamps Clamp - H-57126-SF is a Horizontal hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of H57126SF

Material grade
Steel / zinc-plated
Base type
Flanged base
Spindle position
Fixed spindle position
Holding Capacity (kg)
490 kg
Holding Capacity (N)
4900 N
Handle movement
60 degrees
Bar movement
85 degrees

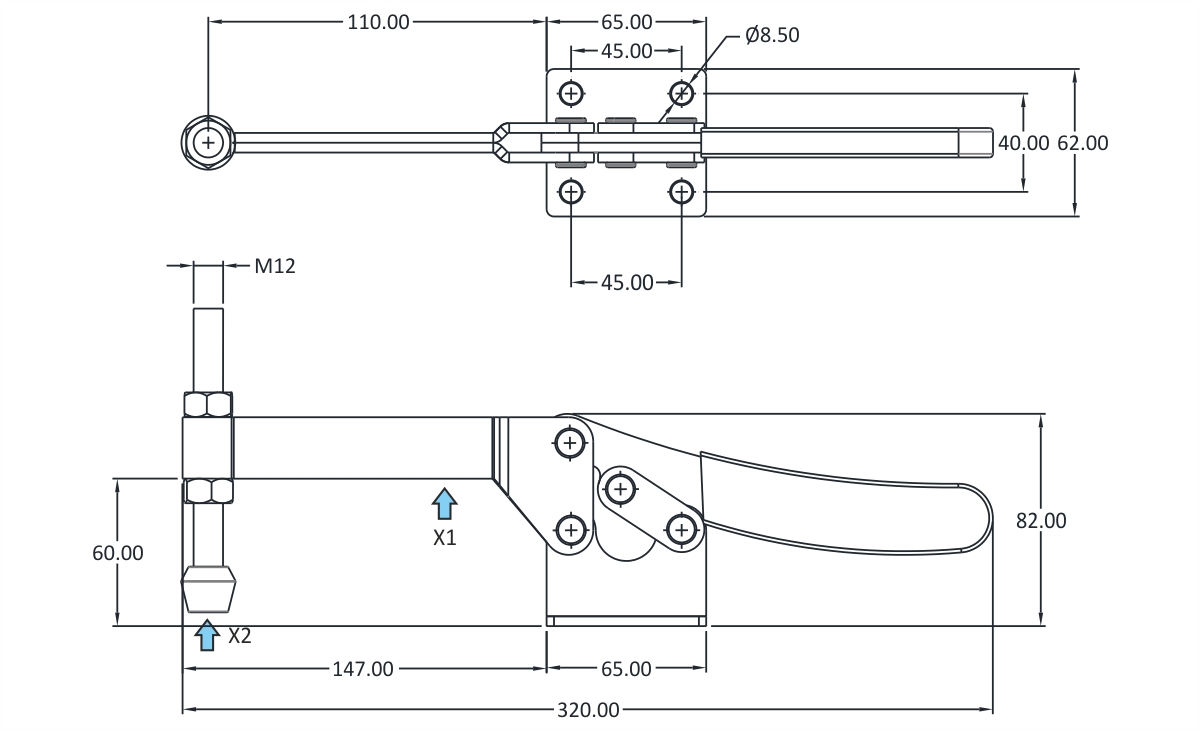

Dimensions

A
82

B
320

C
60

D
45

E
40

F
65

G
62

H
147

J
8.5

K
110

L
M12 Bolt





Anemo Engineering is offering S-Clamps Horizontal hold down action toggle clamp H-57126-SF as Factory New.
