H-45105-SF

>S-Clamps Clamp - H-45105-SF

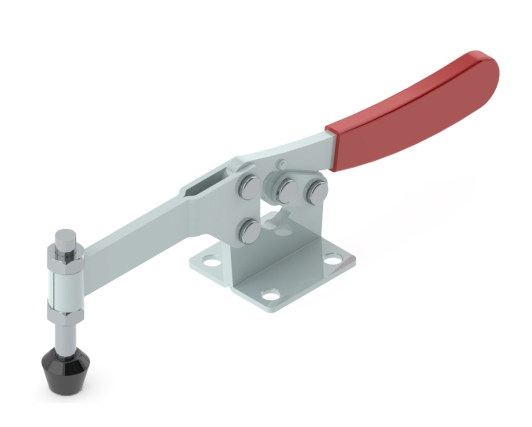

Horizontal hold down action toggle clamp


The S-Clamps Clamp - H-45105-SF is a Horizontal hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of H45105SF

Material grade
Steel / zinc-plated
Base type
Flanged base
Spindle position
Fixed spindle position
Holding Capacity (kg)
340 kg
Holding Capacity (N)
3400 N
Handle movement
60 degrees
Bar movement
85 degrees

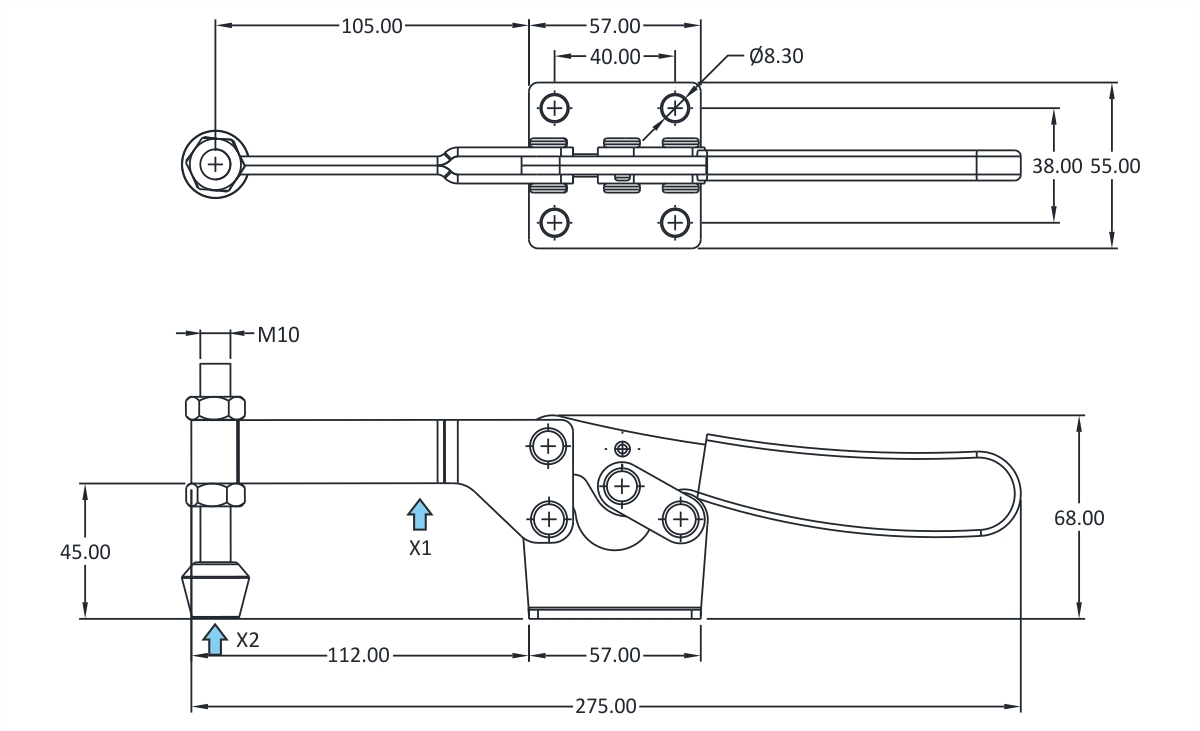

Dimensions

A
68

B
275

C
45

D
40

E
38

F
57

G
55

H
112

J
8.3

K
105

L
M10 Bolt





Anemo Engineering is offering S-Clamps Horizontal hold down action toggle clamp H-45105-SF as Factory New.
